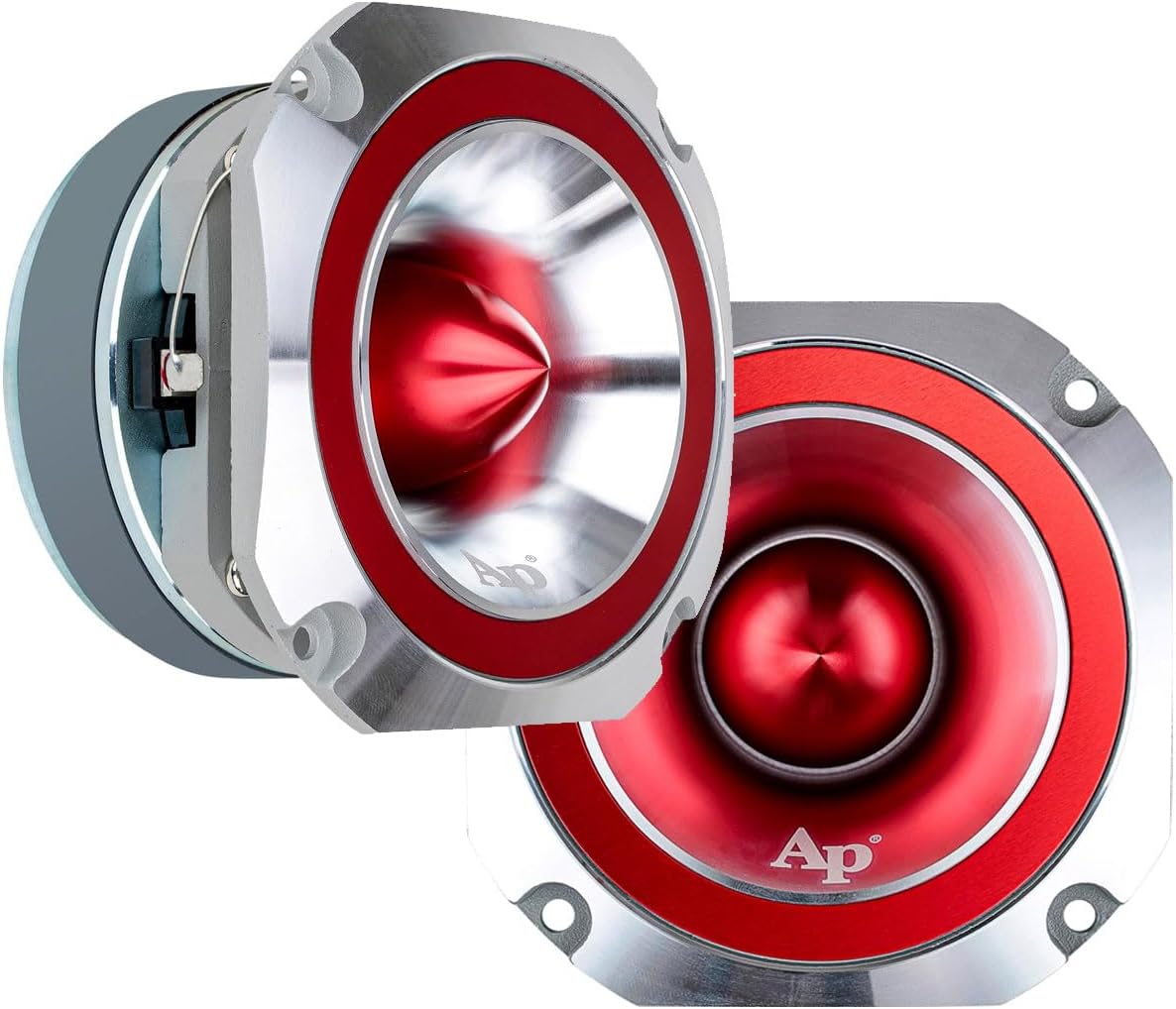

Audiopipe 1 Pair ATR-4053 Heavy Duty Eye Candy Super Bullet Red Tweeters 400W 4-8 Ohm Pro Audio Car Audio

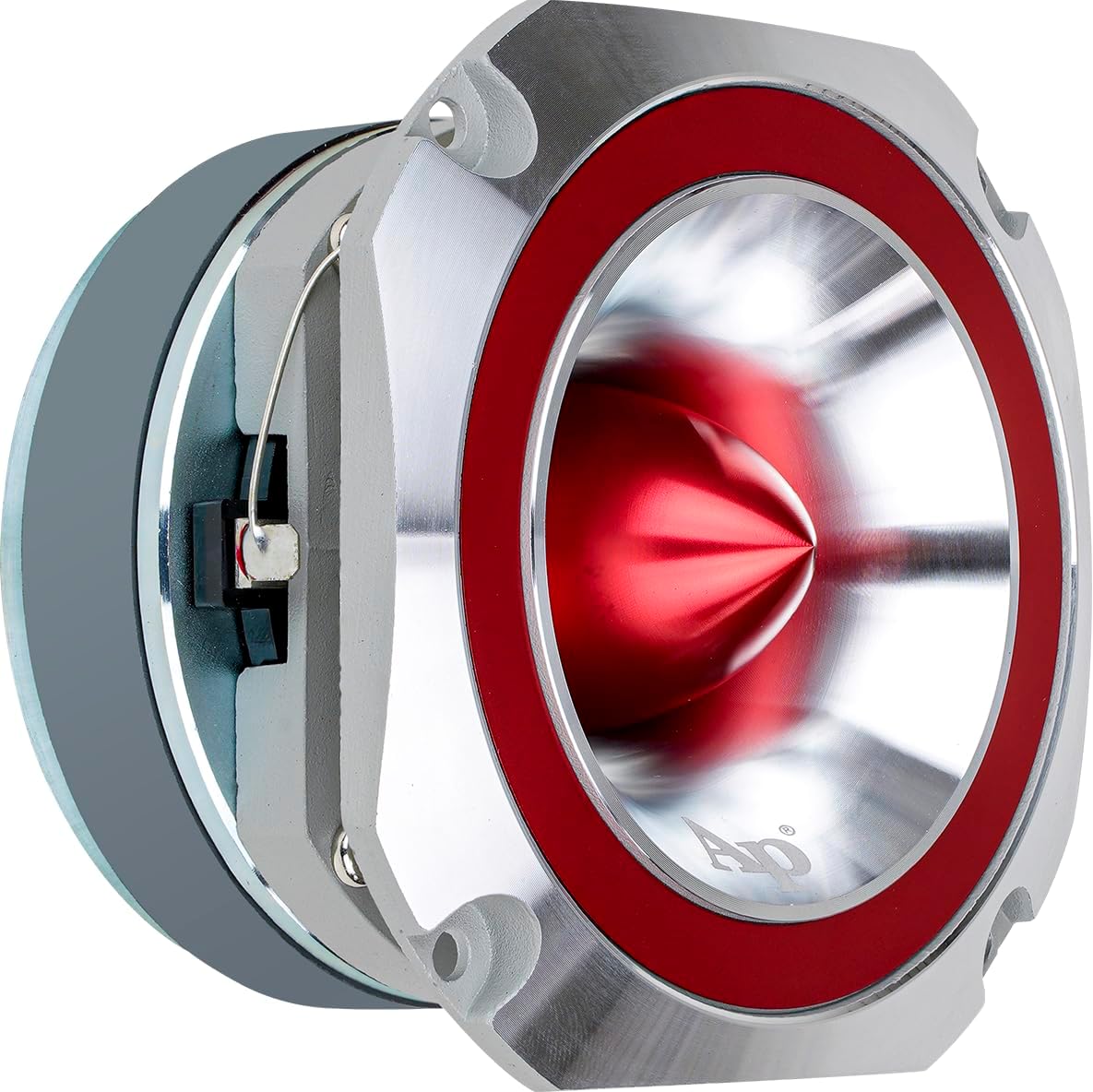

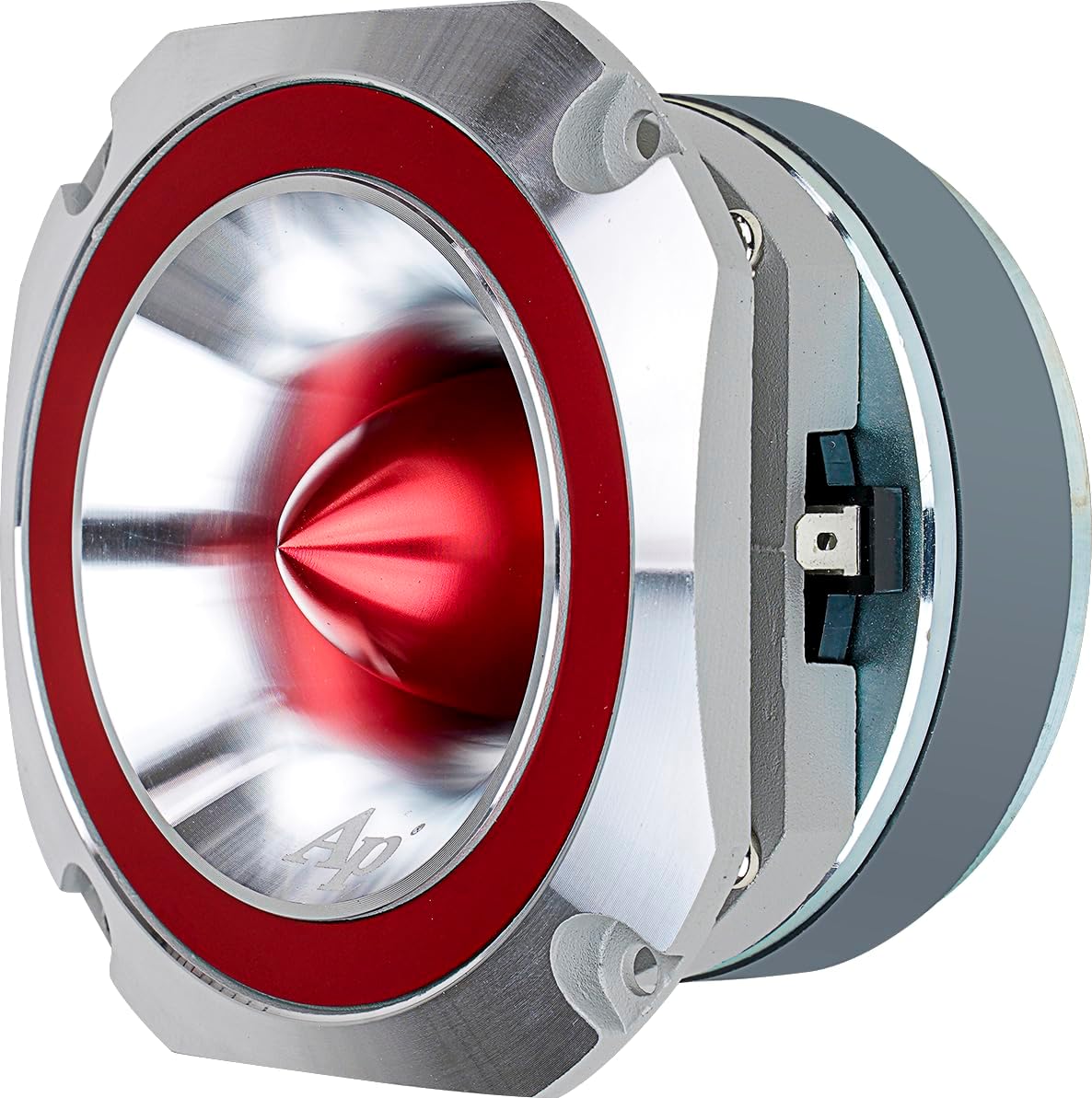

Audiopipe ATR-4053 RED Eye Candy Aluminum Tweeter Diamond Chrome Cutting Finish bullet super tweeter! With high frequency response up to 22KHz and a sensitivity of 107 dB can keep up with even the most demanding speaker systems. A square faceplate makes it easier to install, made from a strong aluminum horn, which offers a smooth response and extremely high efficiency, enabling it to cover a wide frequency range and offer a smooth response.
Features:

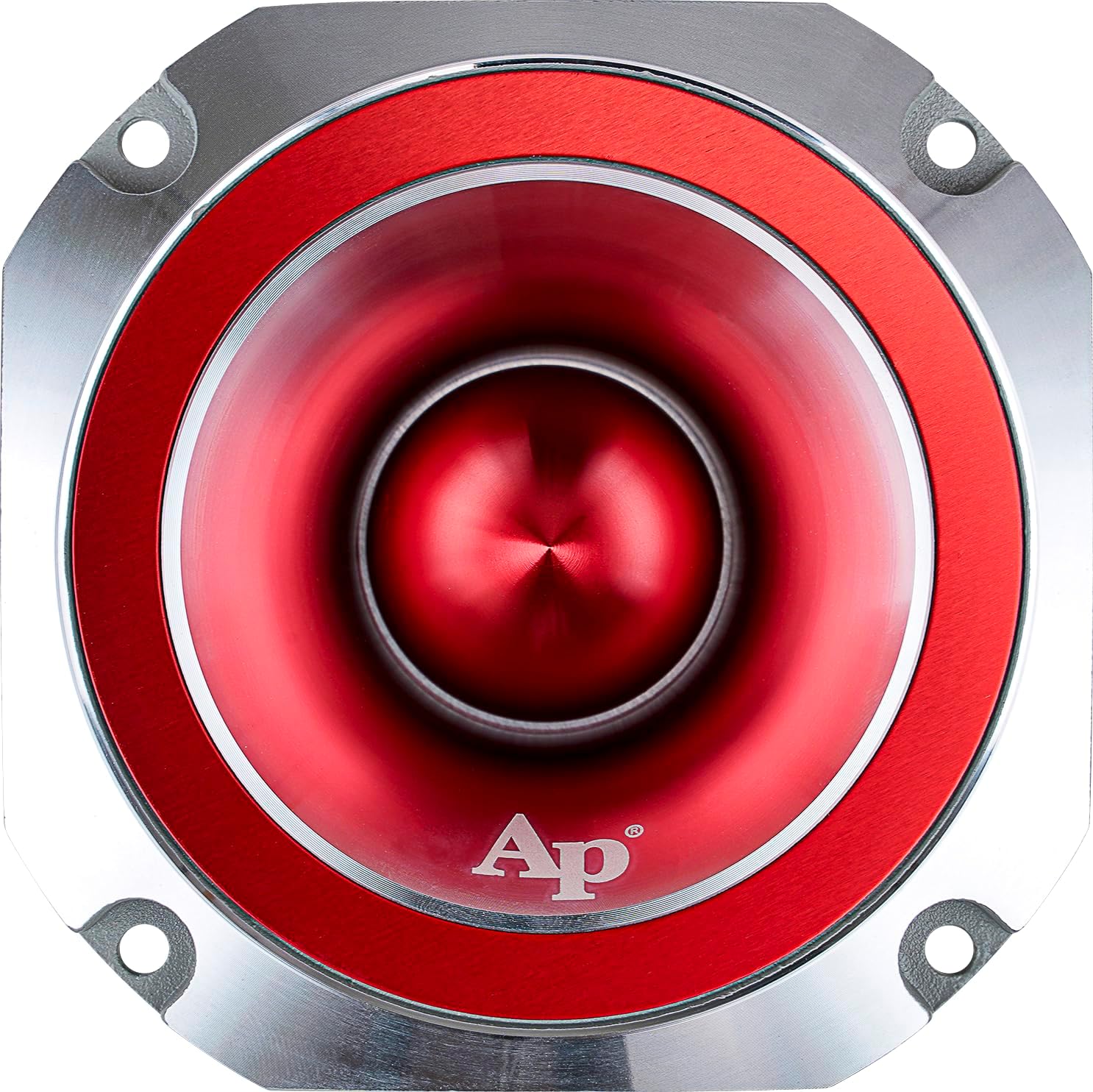

- Aluminum tweeter diamond chrome cutting finish
- 1.5” High temperature kapton voice coil

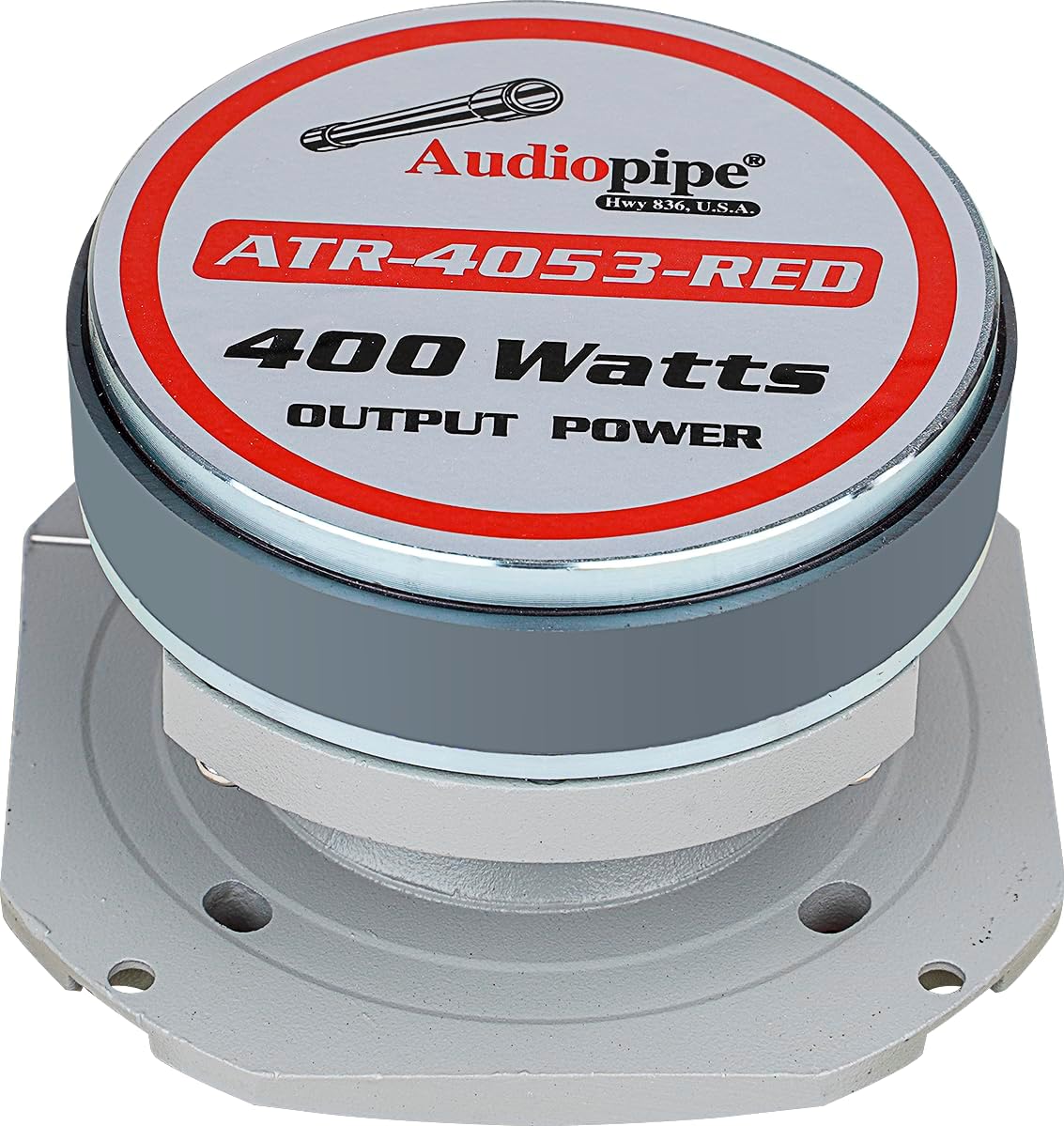

- 13 Oz Magnet structure
- Ferro fluid enhanced voice coil
- 13 Oz Magnet structure

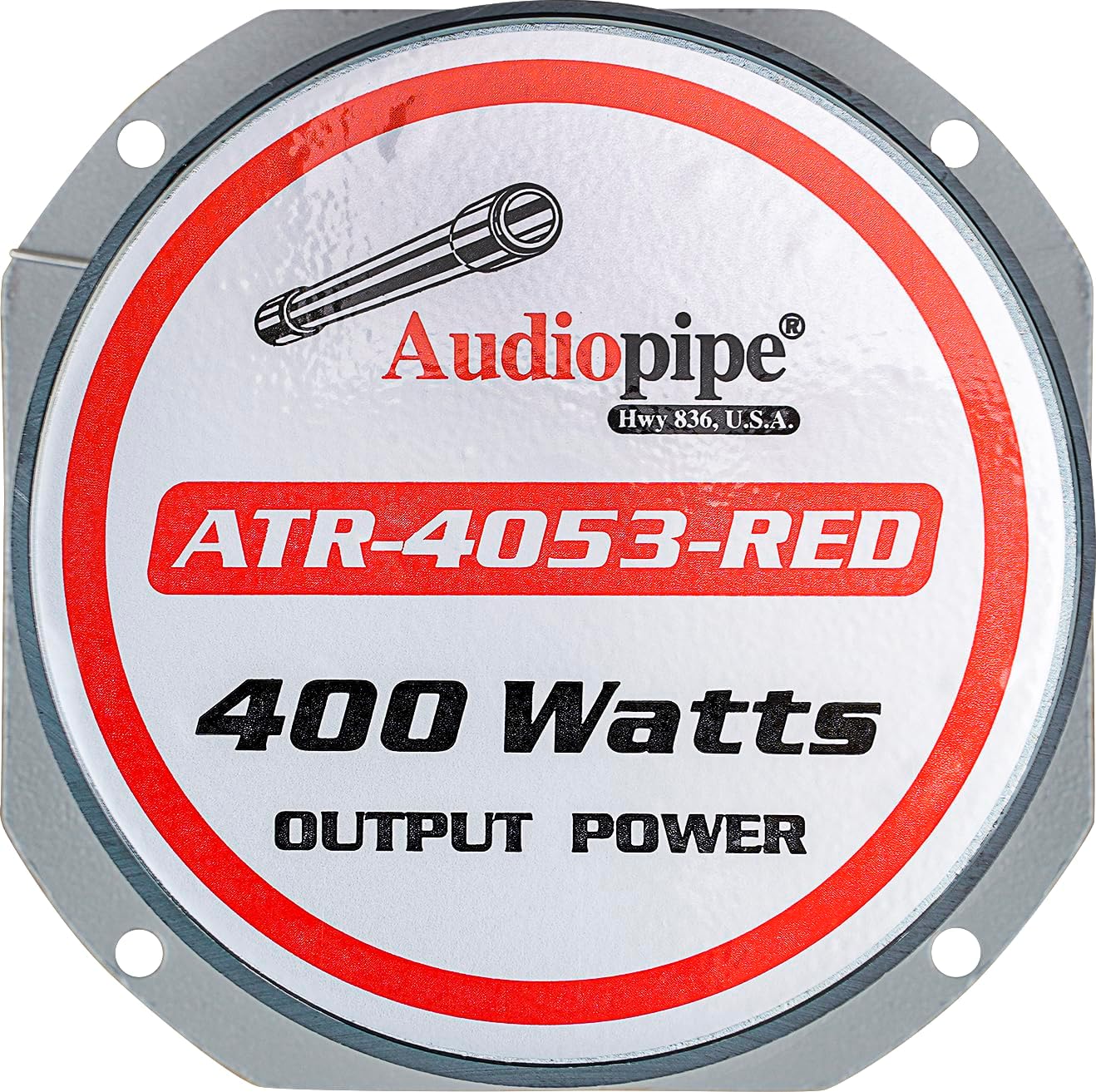

- 400 Watts peak power
- 4-8 Ohms impedance
- Sensitivity: 107 dB
- Frequency response: 3000-22KHz

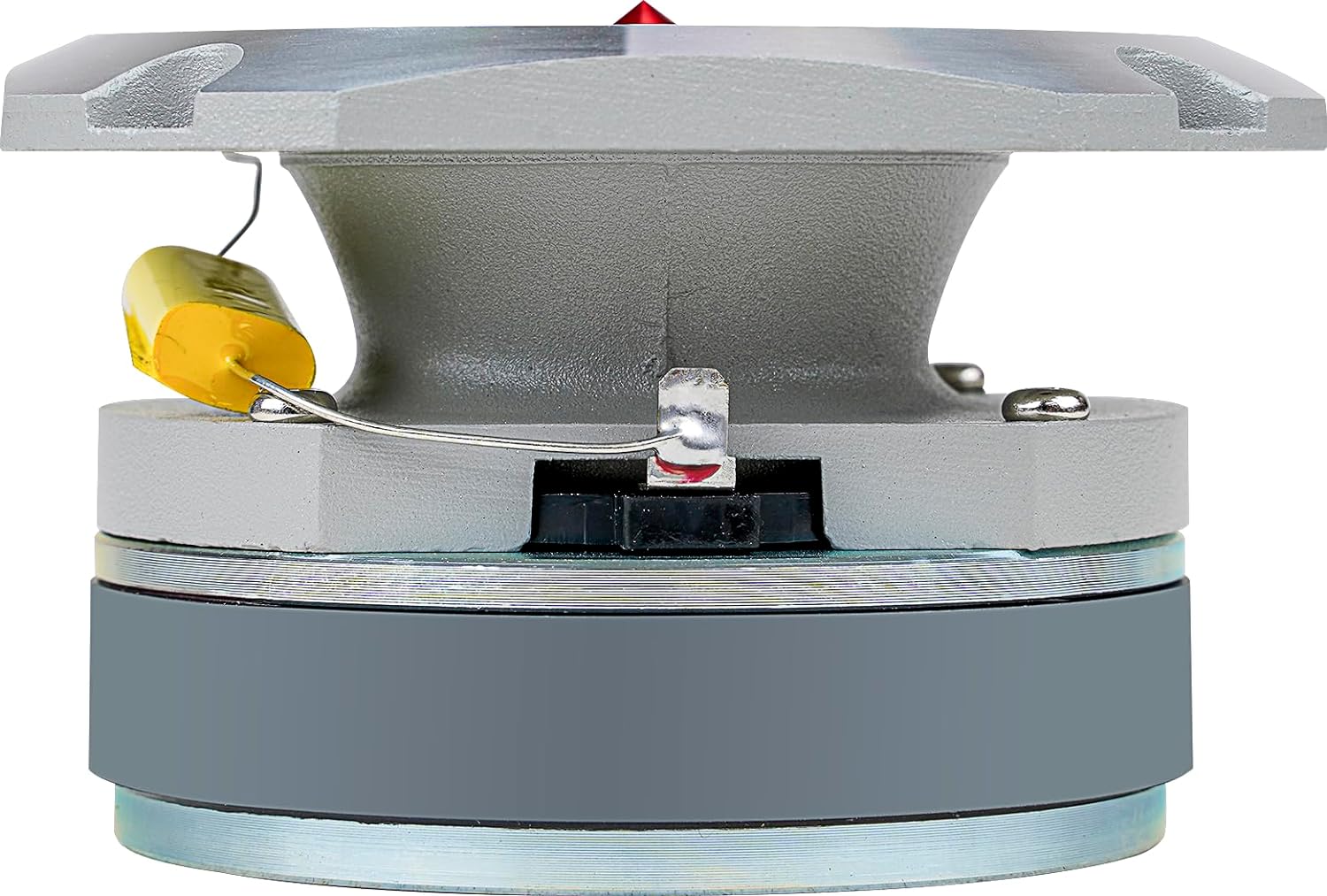

- Crossover capacitor included

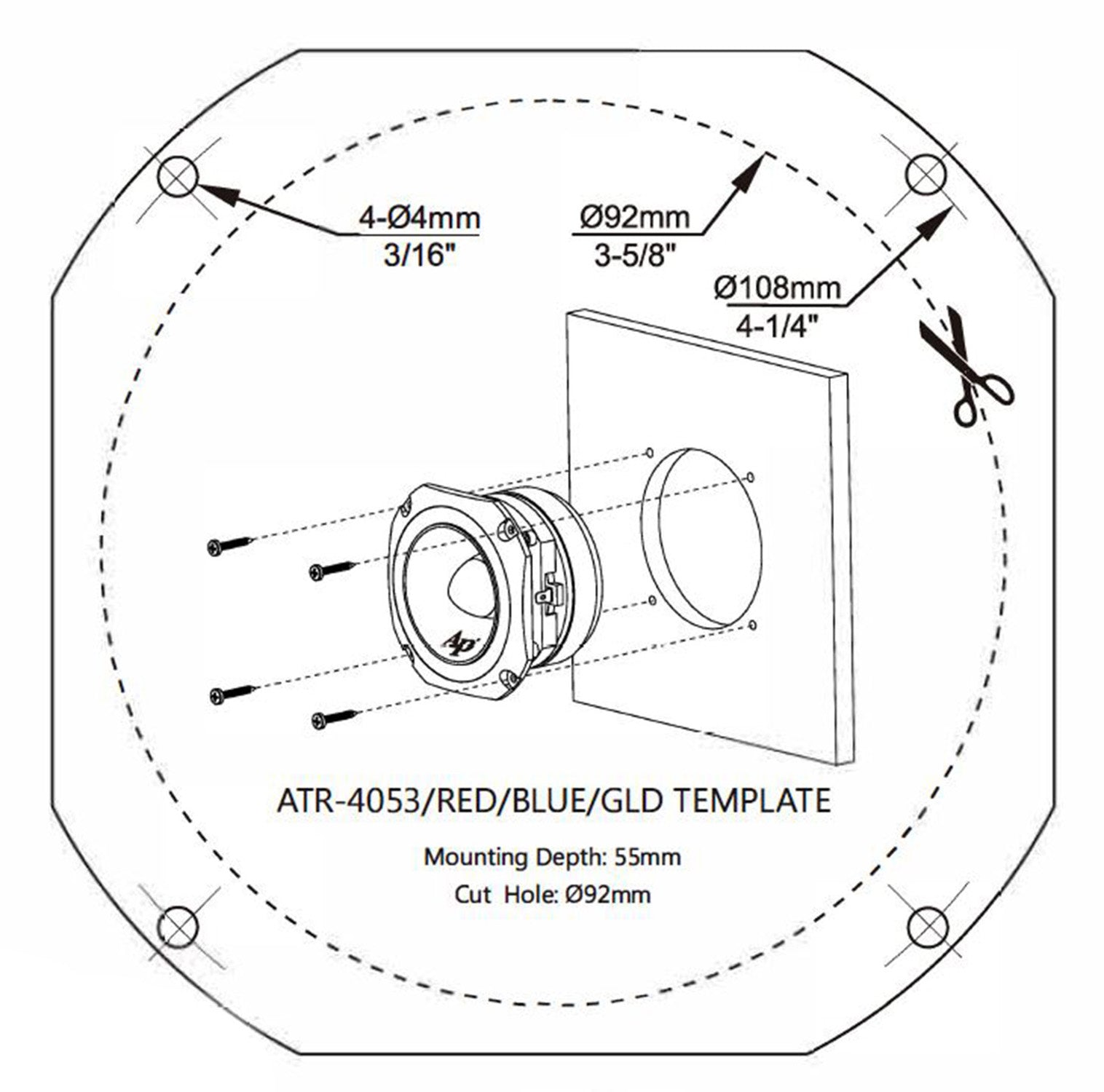

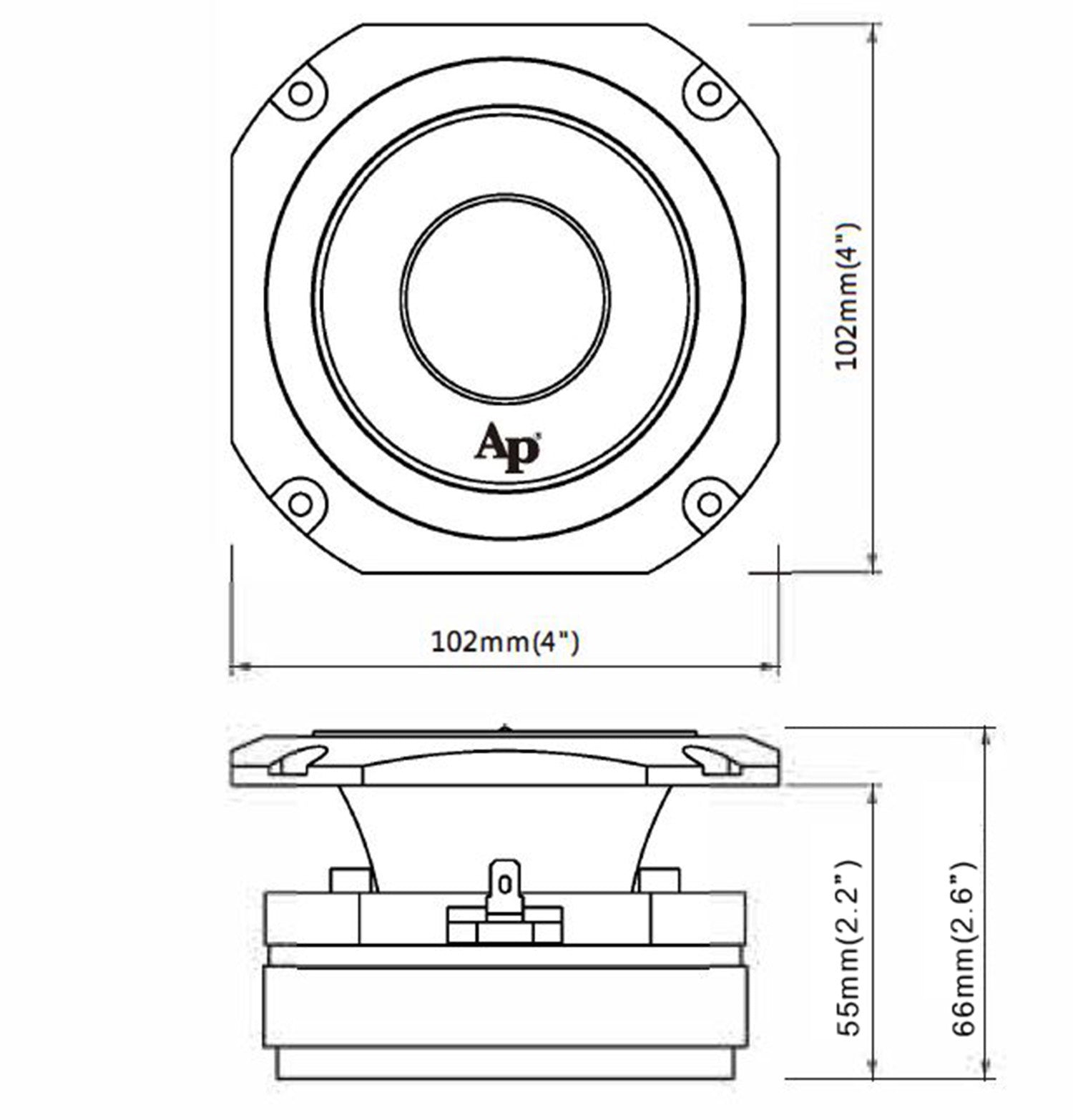

Dimensions:
- Overall Diameter: 4"/ 102mm
- Overall Depth: 2.6" / 66mm
- Front Mount Baffle Cutout: (Cut Hole) 3.6" / 92mm
- Mounting Depth: 2.2" / 55mm
- Motor Diameter: 3.5" / 90mm
INSTALLATION INSTRUCTIONS
If you purchased a Crossover Network for your woofer, Midrange or Tweeter system, you do not need to connect a condenser.
If your system does not include a Crossover Network, you must connect a capacitor as follows:
1. Connect either end of the capacitor to the positive terminal (+) of speaker.
2. Connect other end of the capacitor to the speaker wire harness; be certain to connect to the positive side of the harness, which is the radio output (+) side.
3. To get better sound performance, it is recommended to use capacitor 1.5μF/250V for this unit.
